Chuangyilong ODM Service X-Ray Cargo Scanning Machine For Logistics Warehouse
Company Profile
Founded in 2008, Chuangyilong has always implemented a high-quality products strategy and honest and pragmatic services. From product development, production, sales and other aspects,it has established a standardized quality management system in strict accordance with the ISO9001 international quality management system specifications. X-ray security inspection machines,metal detection doors, security inspection doors and other products produced by the company have been awarded the license for the use of security inspection equipment.
Product Description
Shenzhen Chuangyilong Electronic Technology Co., Ltd. (a national high-tech enterprise) focus on the field of express,logistics and other public places security inspection,is a leading security inspection products and solution provider in China.

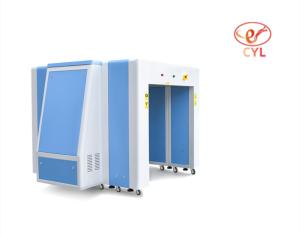

Single energy security baggage scanner is a typical product of Chuangyilong company.It uses X-ray to penetrate and check baggage or cargo without open.
Specification
| Category | Item | Spec. |
| Basic Information | Working Voltage | 220V |
| Tunnel Size | 1200x1000 mm |
| Conveyor Max Load | 200KG |
| Max Power Consumption | 0.46 KVA |
| Noise Level | < 60 db |
| Product Size | 229(L) x200W) x274(H) cm |
| X-Ray Generator | Tube Current | 0.4~1.2mA |
| Tube Voltage | 100-160 KV |
| Cooling Style | 100% oil cooling |
| Generate Direct | from side |
| X-Ray Sensor | dual energy |
| Generate Angle | 80 degree |
| Image System | Monitor | 19 inch LCD |
| Color | 32 bit true color |
| Image Enhancement | 16/64 times |
| Image Storage | 300,000 |
| Operation Desk | Optional |
| Operation System | Windows |
The Necessity of Using X-Ray Baggage Scanner
X-Ray baggage scanner can quickly and effectively detect various dangerous items in baggage, so it's very useful for the working environment and other sectors today.
Now, the majority of the industry needs to use the X-Ray baggage scanner for improving the level of security.
Usage Place
Baggage scanners are widely used for public safety in many places such as airport , metro station , railway station , exhibition , factory , customs, school , hotel ,hospital , express company , logistics warehouse , government building and other security inspection occasions.
Parameter
Windows system with multilingual operation system
Energy saving design
Emergency stop button
Product size: 229(L) x200W) x274(H) cm
Screen worktop
Transport Package: Wooden
Package Wooden Size: 525(L) x285(W) x260(H) cm
Place of Origin: Shenzhen, China
HS Code: 9022191090
Use environment temperature and humidity: 0 to 45 degree Celsius/20% ~ 95% (not condensed)
Storage temperature and humidity: -20 to 60 degree Celsius/ 20% ~ 95% (not condensed)
Image System
19 inch display screen with high resolution
Color image display 32 bit true color
Image enhancement to make detail more clearly
High/Low penetration to improve the area contrast
Real-time curve,Image reback and recover funtion
Image storage:save any images and processing continuous

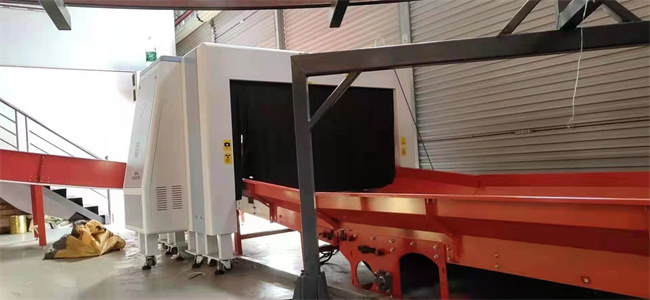

Application Example
baggage scanner, ODM Machine, X-Ray Cargo Scanning Machine
